Quick and quality replacements
To run your business seamlessly, it’s important to make sure your HVAC-R equipment is up to date. At the same time, you want to avoid expensive and disruptive renovations which would interrupt your business. Replacement technology ensures your system upgrade will comply to the latest regulations, incorporates the latest energy efficient and comfort technologies while it can be implemented fast and at lower costs thanks to the reuse of existing elements of your current installation.
Benefits of replacing your HVAC system with Daikin

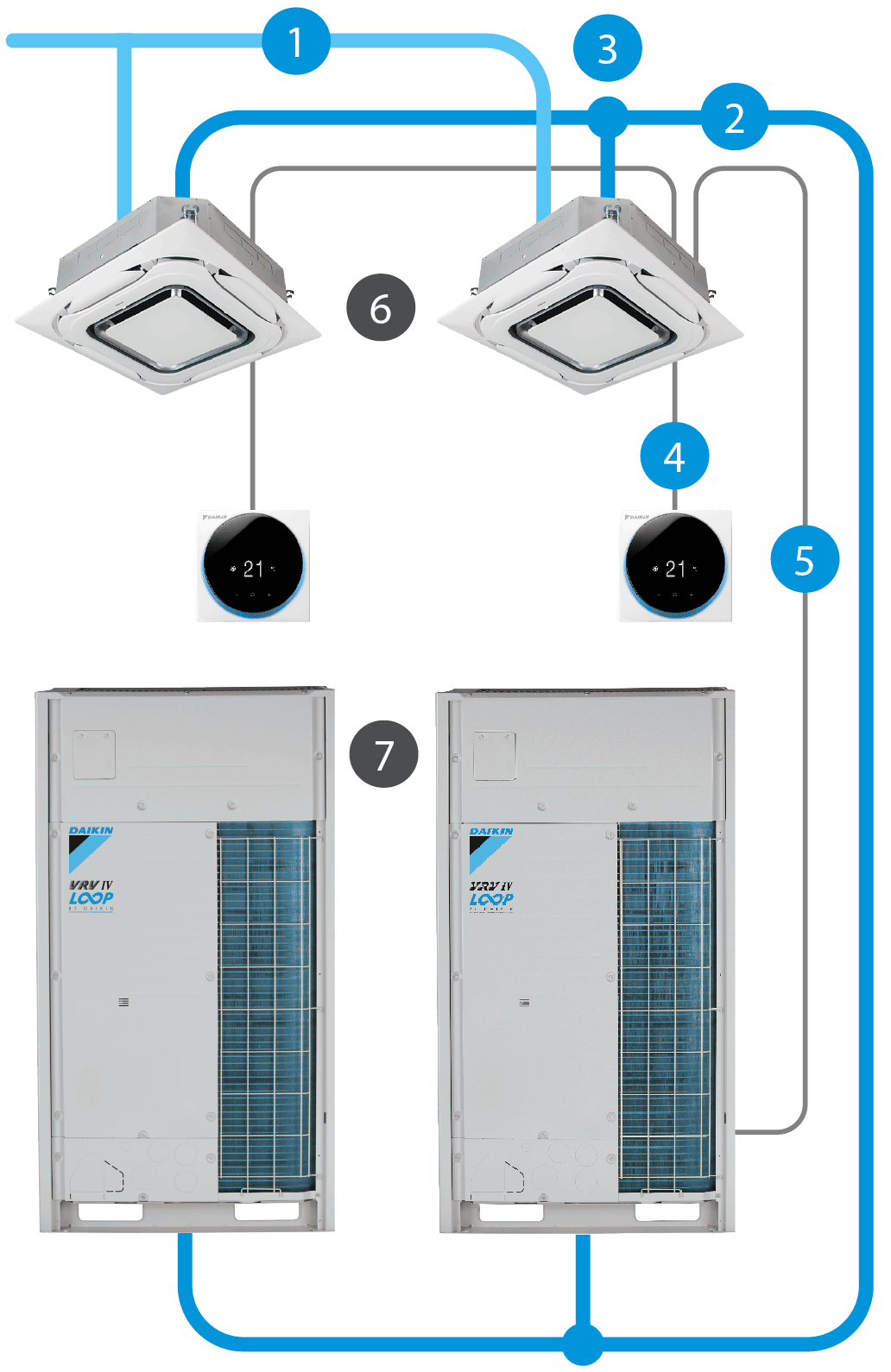

How does Daikin replacement technology work?
1. Reuse drain pipes
Durable PVC pipes can be easily reused. Only flow tests are required.
2. Reuse refrigerant pipes
Pipes used for R-410A, R-407C and R-22 systems can be reused.
To reuse R-407C and R-22 pipes VRV-Q units work on a lower operation pressure.
3. Reuse refrigerant branch pipes
There are no restrictions when upgrading from a Daikin VRV system. Other VRF systems require branch pipes to withstand pressure up to 3.3 MPa.
4. Reuse remote control wiring
Reuse wiring when upgrading from a Daikin VRV system. In other cases, this will depend on the cable type.
5. Reuse indoor-outdoor wiring
Reuse wiring when upgrading from a Daikin VRV system.
In other cases, this will depend on the cable type.
6. Indoor units
Optional replacement. Depending on the model type and condition of the indoor units.
7. Outdoor units
Need to be replaced.
Installation cost comparison
How to plan a succesful upgrade or replacement?
Daikin’s step-by-step guide helps you to plan your replacement
Map your current HAVC system (age, refrigerant, capacity, …)
Evaluate which upgrade or replacement options you have
Calculate your cost saving via the Daikin calculator for your option
Request a full energy audit of the current system to ensure your upgrade or replacement is future proof
Hear what our customers have to say
Hoteles Santos
For a hotel complex changing the whole airconditioning system normally means a
massive loss of business over a longer period. This project proves that there is a costeffective
and time-saving solution that reduces running costs dramatically.

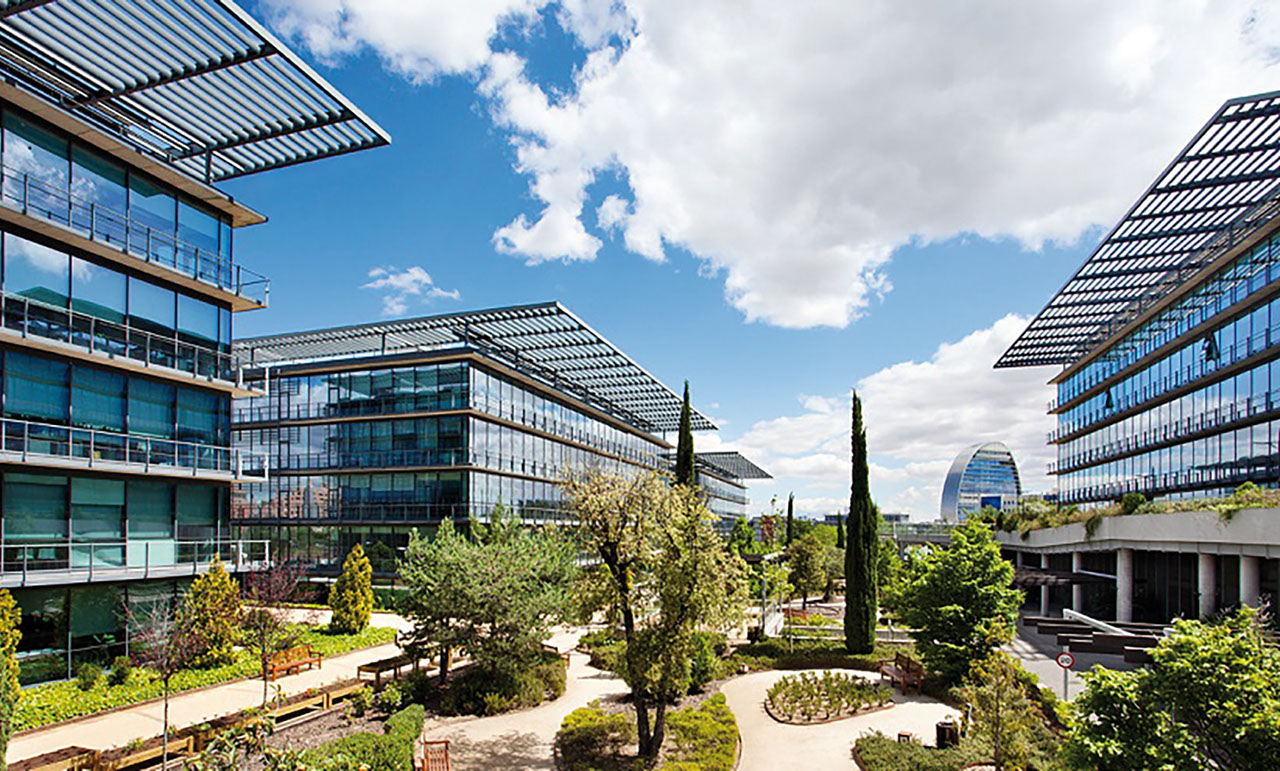

Merlin Properties
The task was to change outdoor and indoor units of a R-22 system installed in 1996.
See how this was realised.
The Bloomsbury Hotel case
Learn how we helped The Bloomsbury Hotel lower their building's energy usage, cut CO2 emissions by 30% and improve comfort levels for guests by optimising climate control.
