Offers a wide variety of new functions that benefit everyone involved
First Launched in Japan in 1982, the Daikin VRV system has been embraced by world markets for almost 40 years. Daikin proudly introduces the advanced VRV system. We provide higher benefits to various users related to air conditioning systems, for example, building owners, consultants, installers and even building management.

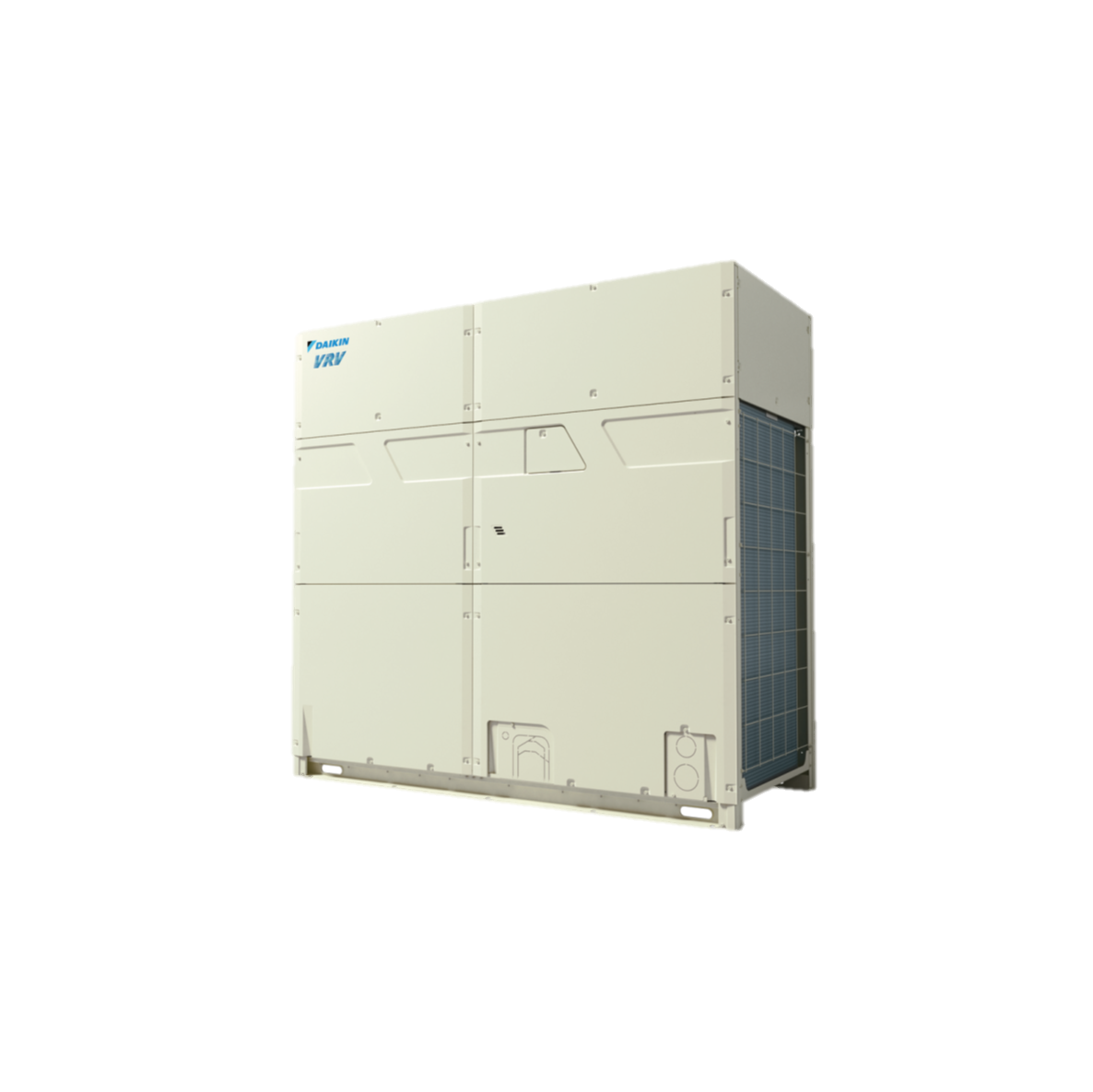

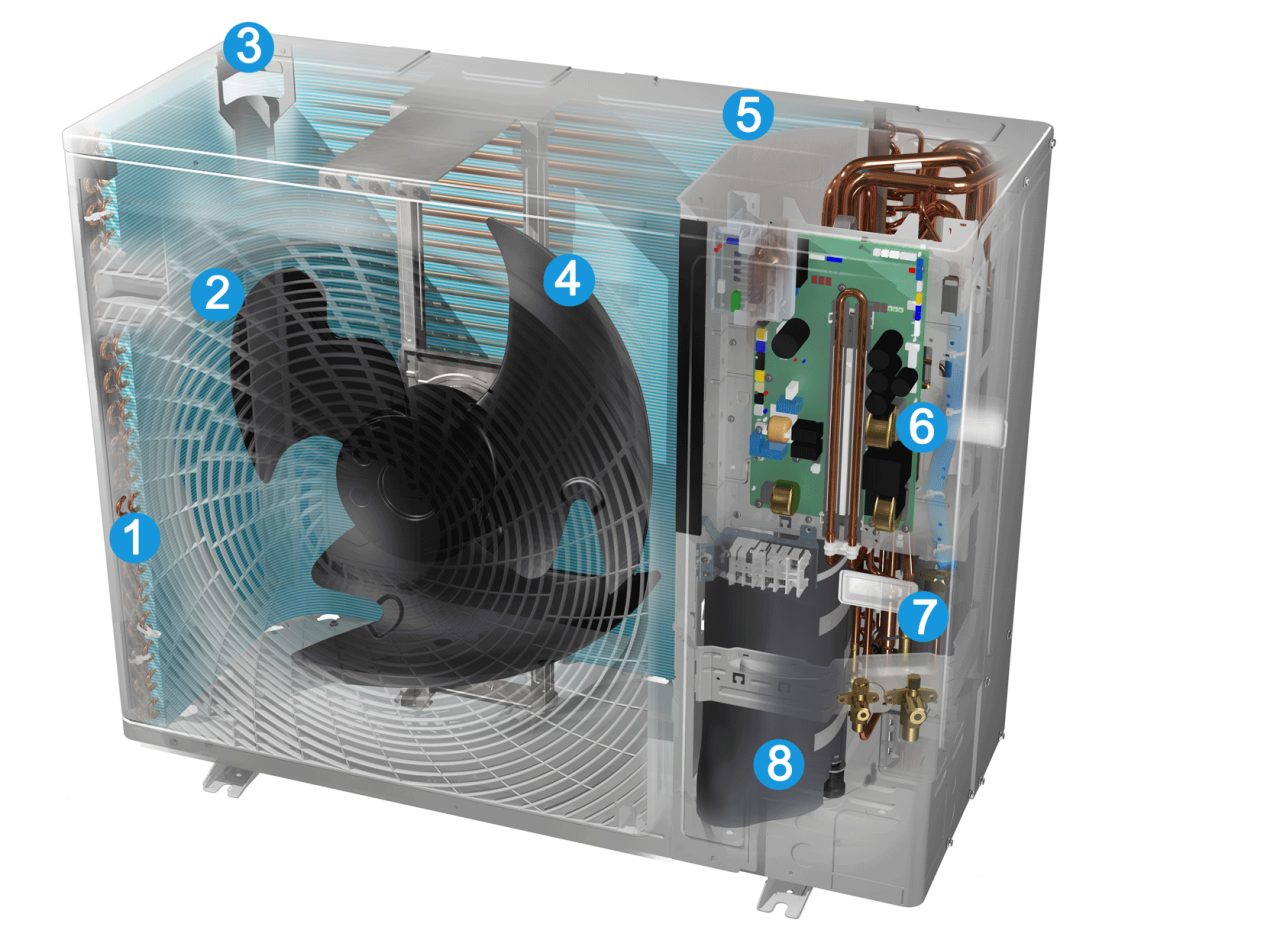

- InformationAdopt a new casing to realise a single module of up to 24 class
- Achieved significant energy savings with improved technology
- Defrost functions improved comfort by extending the heating operation time
- Design flexibility is further improved by simultaneous extension of height difference and equivalent length.
- Sealed electrical component box (IP55) blocks the ingress of debris or water, that leads to unexpected failures.
- A new electrical component service window on the front panel allows easy access to the main board without removing the front panel.
- Equipped with various new functions, the new model shows a significant improvement in total performance.
Outdoor Air Processing Unit
FXMQ-AF Series
- Set point temperature can be selected similar to standard VRV indoor unit
- Maximum connection ratio increased from 100% to 130%
- With the VRT control feature, higher efficiency can be achieved

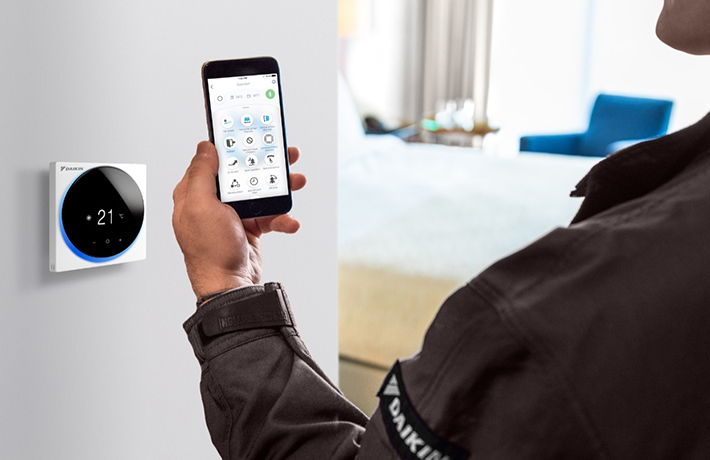

Madoka
A Stylish Remote Controller designed to enhance user experience
- Color options: Two attractive colors to match any interior
- Compact design: Measures only 85 x 85 mm
- Timer functions: Includes OFF timer and weekly schedule timer
- Smartphone control: Easy setting via smartphone application using Bluetooth® wireless technology (for Installer/Facility manager)
- Comfort setback
Lifecycle Cost & Comfort
Comfort
Defrost operation before the equipment is shut down speeds up the increase of discharge air temperature of the next heating operation.•
If defrost operation time is short, the system will optimise defrost conditions, extending the heating operation time.
Large-Capacity Single Module
Installtion space and cost are reduced by large-capacity casing for max 24 class.

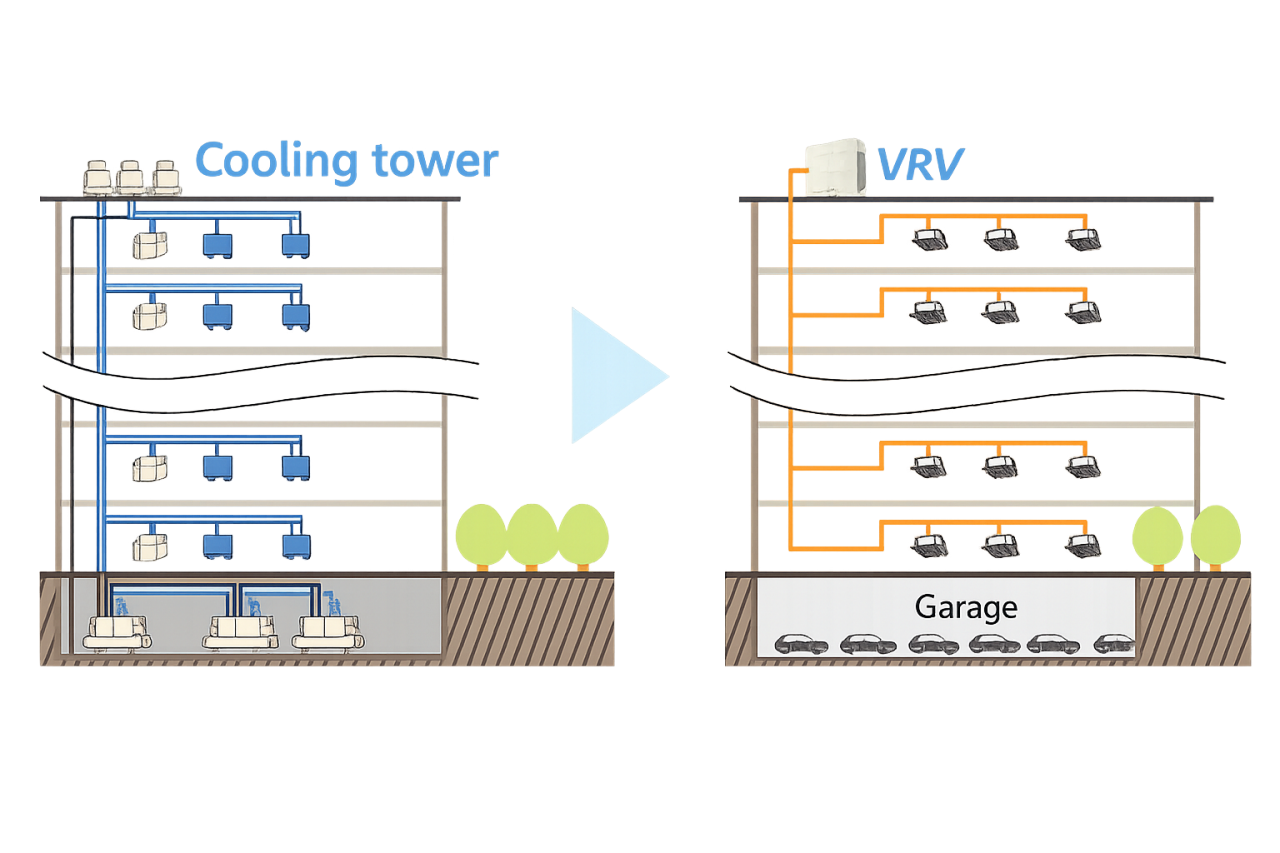

Efficient Space Utilisation
When construct a large-scale air conditioning system on a single refrigerant system, space for air conditioning is drastically reduced.
Even with a 20-storey building all of the outdoor units can be installed on the rooftop.
Energy Saving Technology
Further improvement of energy saving by high efficiency compressor and VRT Smart II control.
Achieves high TCSPF/HSPF, that reduces running cost.
Flexible Design & Engineering Supports
Engineering Support Software
Strongly supports for facility design, offering model selection assistance, energy saving and IEQ simulations, drawing support, etc.

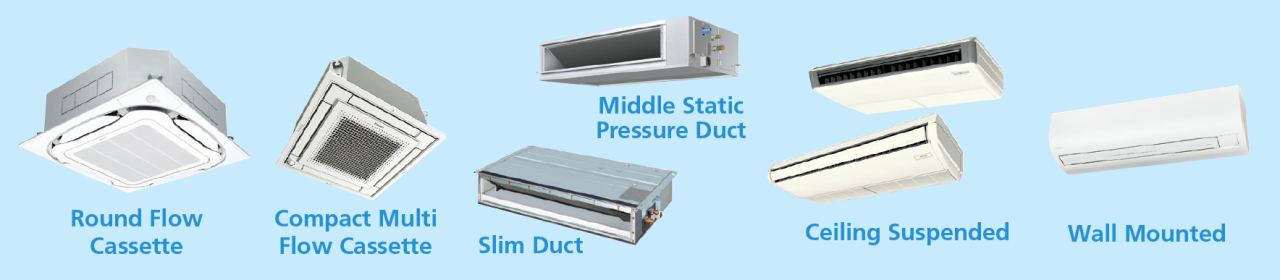

Varied Lineup of Indoor Units
With various types of indoor units available, comfortable airflow is ensured in every space.
Long Refrigerant Piping
Equivalent length extension max. 190 m
Height difference extension max. 110 m (20 m longer than conventional models)
By applying for both extensions at the same time, supports a wide range of applications.
Easy Installation
Slimmer Main Piping
For gas pipe of up to 20 class, the main piping diameter size can be reduced from standard size.It enables lowering installation cost.
Simple Piping, Easy Wiring
The REFNET piping system and DIII-NET system simplify refrigerant piping and control wiring installation.
Electrical Component Service Window
- Easy access to the main PCB without removing the front panel.
- Quick field setting and trial operation.
Process visualization (Test run only)
- A progress rate (0% to 99%) is indicated on the PC board for Easy arrangement for on-site work.
- The REFNET piping system and DIII-NET system simplify refrigerant piping and control wiring installation.
Reliability & Comfort

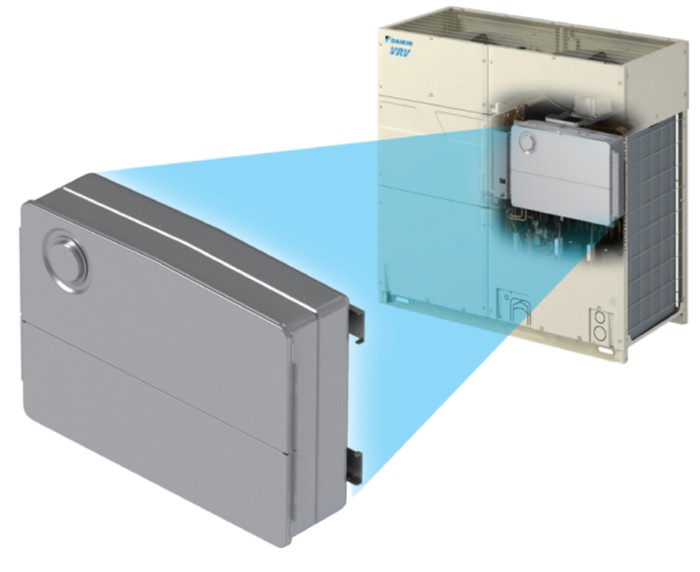

IP55 Sealed Component Box
Sealed electrical component box (IP55) blocks the ingress of debris or water, that leads to unexpected failures.

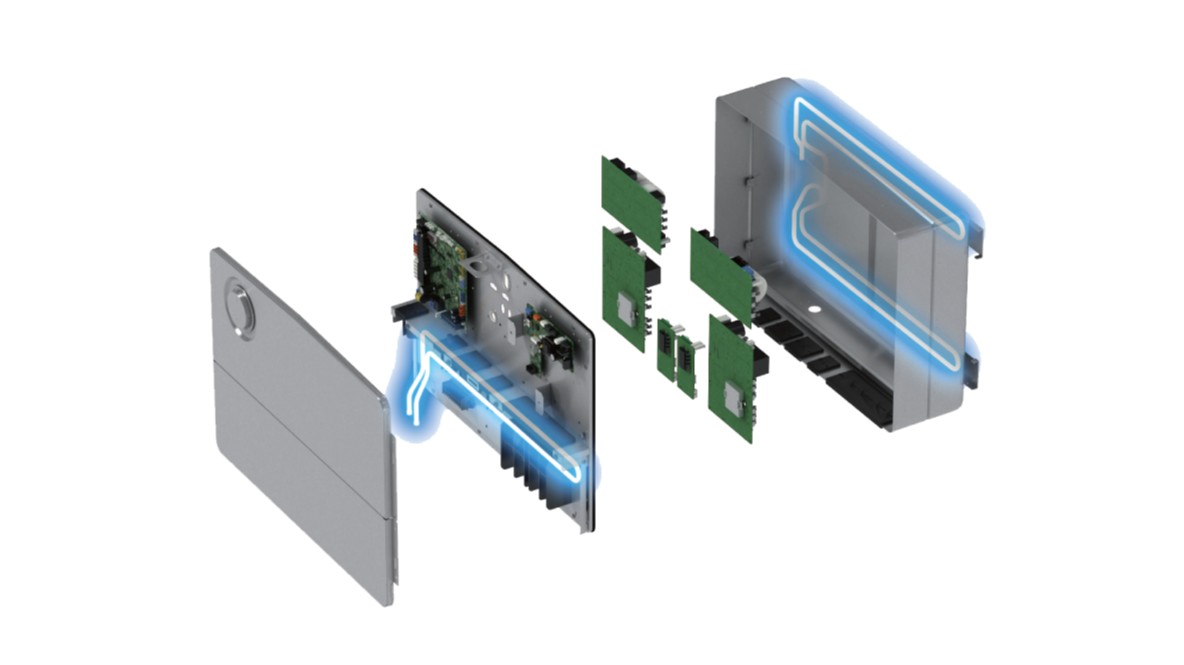

Refrigerant Piping Cooling System
Refrigerant cooling circuit enables operation in high outdoor temperatures.

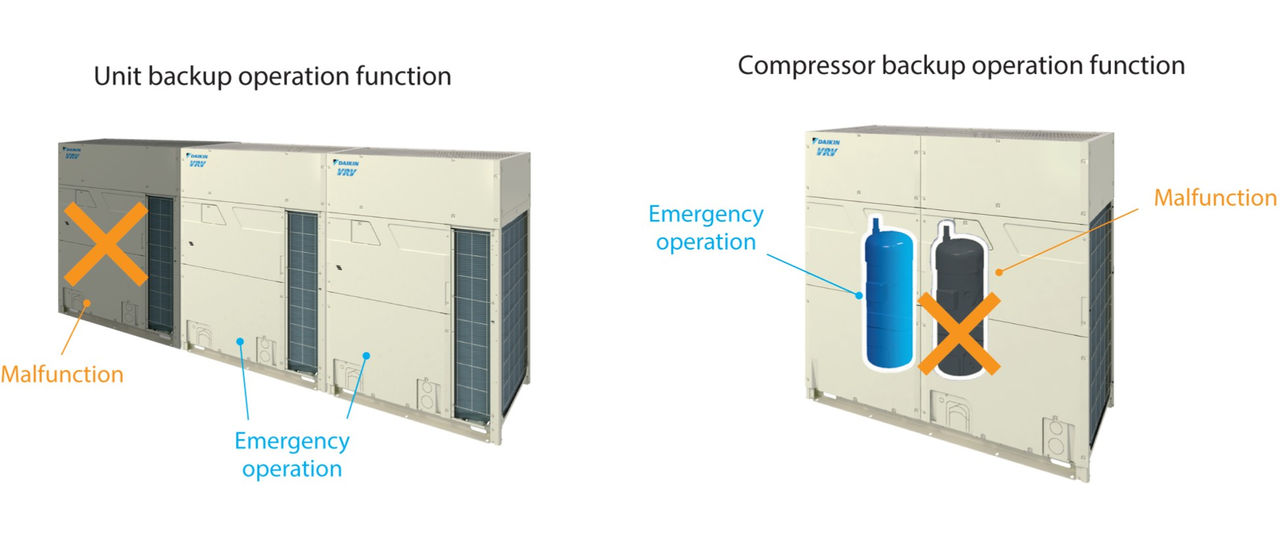

Double Backup Operation Functions
Unit backup & Compressor backup ensure continuous operation.
Now up to 24 Class
New Design casing that realises a single module of up to 24 class
Energy Savings

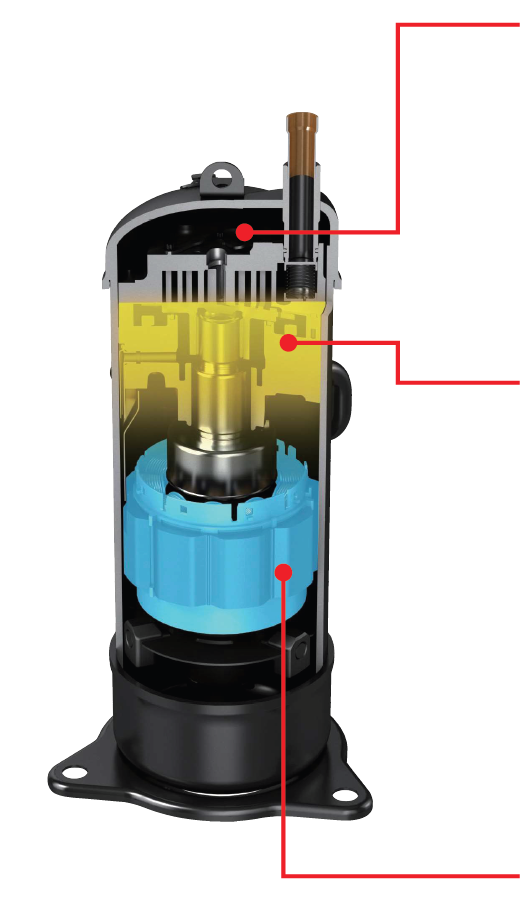

High effieciency compressor

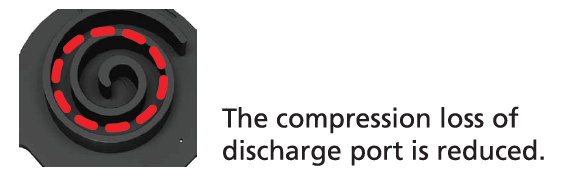

Improvement of the discharge port
By improving the shape of the refrigerant discharge port, the pressure increase near the discharge port of the gas refrigerant after compression is suppressed and the compression loss is reduced.
Would you like me to refine this into a technical datasheet entry, a customer-facing benefit statement, or a marketing headline that emphasizes efficiency gains?
Optimising the back pressure control / New oil control function
In addition to the conventional intermediate pressure adjustment port, the pressing pressure of the orbiting scroll during operation has been optimised, and the newly adopted oil control mechanism has reduced gas leakage and mechanical loss.
Adoption of a high-performance concentrated motor
By adopting it, the coil circumference is greatly reduced, which makes the coil denser and thicker, and the electrical resistance of the coil is dramatically reduced to improve motor efficiency. Furthermore, the motor is light-weighted and downsized.
Design Flexibility
Simultaneous extension of height difference and equivalent length
Design flexibility is further improved by simultaneous extension of height difference, improved from 90 m to 110 m, and equivalent length (up to 190 m).
Height difference extension - Max. 110 m
For height differences exceeding 50 m with the outdoor unit above the indoor unit and 40 m with the outdoor unit below, the main piping liquid piping size must be increased.
Equivalent length extension - Max. 190 m
When the equivalent piping length from outdoor unit to indoor unit is 90 m or more, be sure to increase the main piping liquid piping size.
*In addition to increasing the size of the main pipe, there are other piping restrictions regarding height difference extension and equivalent length extension. Check the Installation Manual for details.*

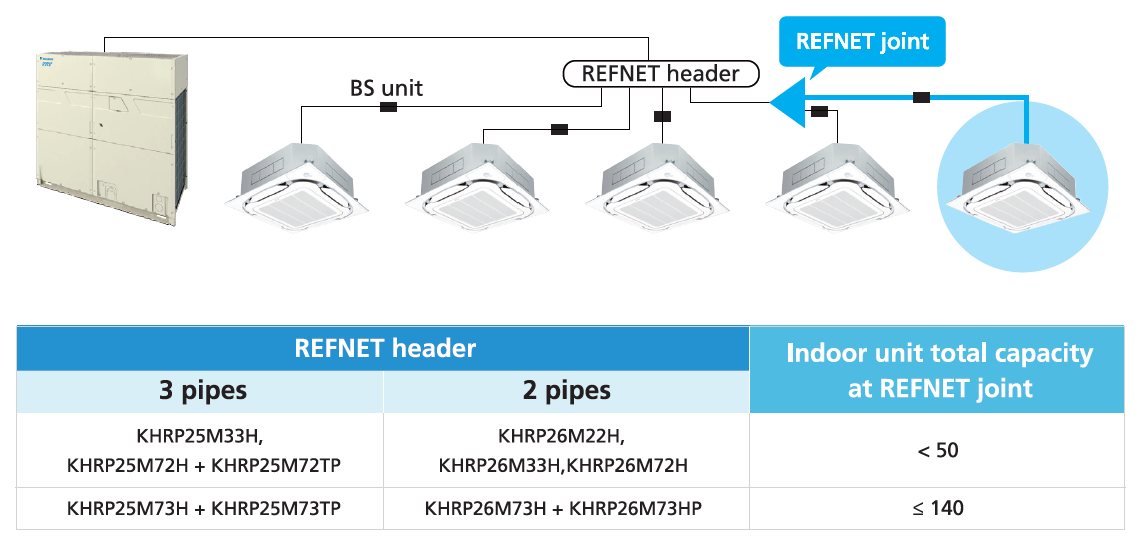

REFNET header downstream branching supported
Piping branch by REFNET joint is possible downstream of REFNET header. The indoor unit arrangement can be more flexible.

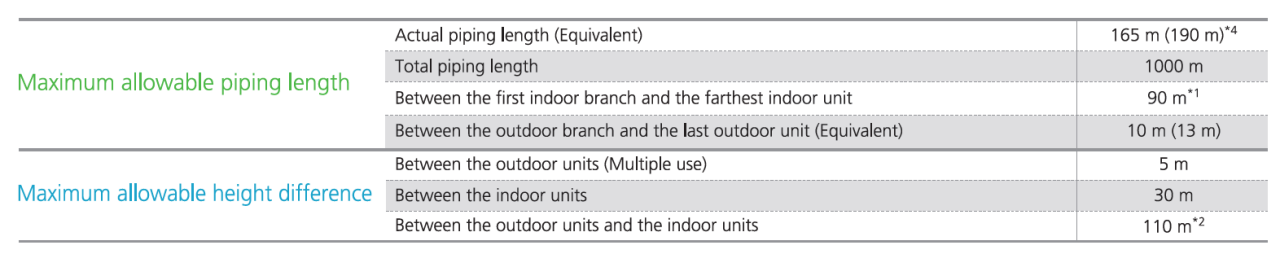

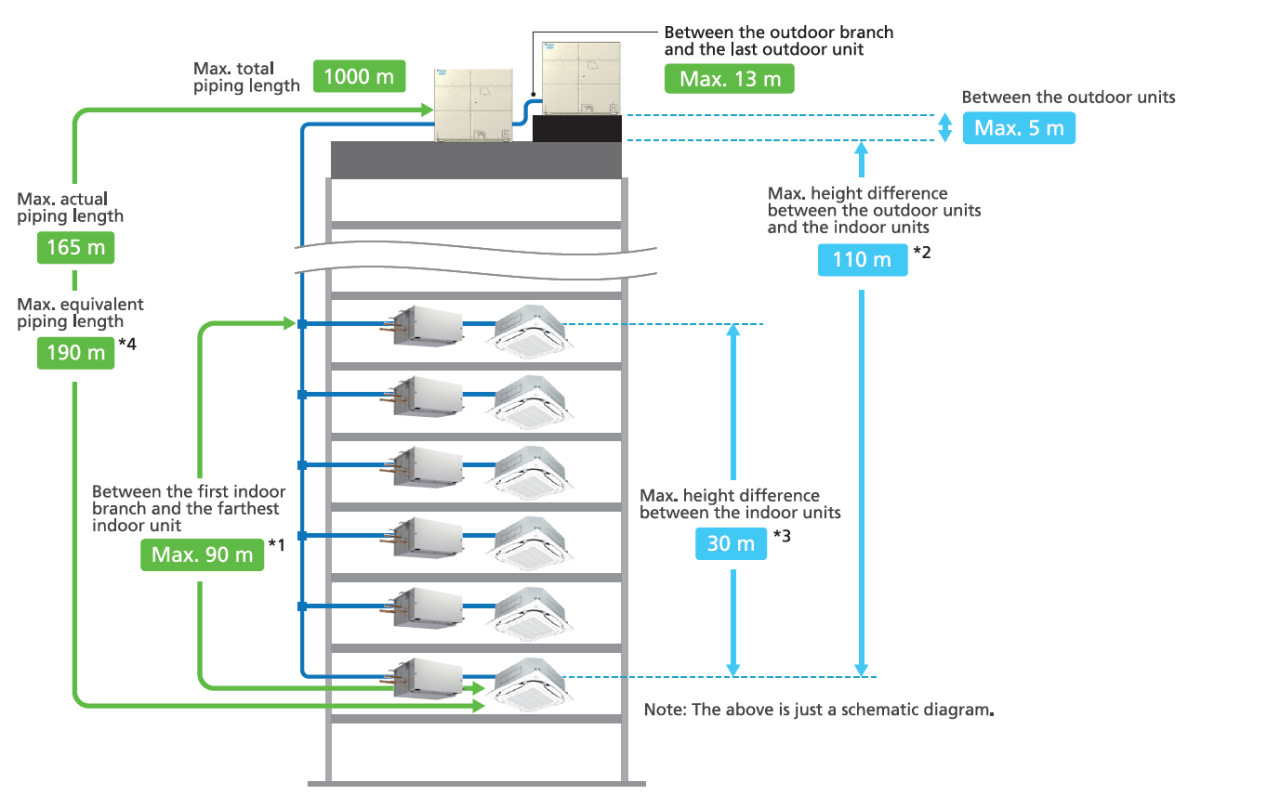

Long Piping Length
Long Piping length enhances design flexibility, enabling support for large buildings.
*1. No special requirements up to 40 m. The maximum actual piping length can be 90 m, depending on conditions. Various conditions and requirements have to be met to allow utilisation of 90 m piping length. Be sure to refer to the Engineering Data Book for details of these conditions and requirements.
*2. When Height differences above 50 m if the outdoor unit is above the indoor unit and 40 m if the outdoor unit is below the indoor unit, a dedicated setting on the outdoor unit is required. Refer to the Engineering Data Book and contact your local dealer for more information.
*3. When Height differences are 15 m or more, maximum actual piping length must be 120 m.
*4. In the case where the equivalent piping length from outdoor unit to indoor unit ≥ 90 m, make sure to up size the liquid pipe of the main pipe. Do not up size the high/low pressure gas pipe and the suction gas pipe.

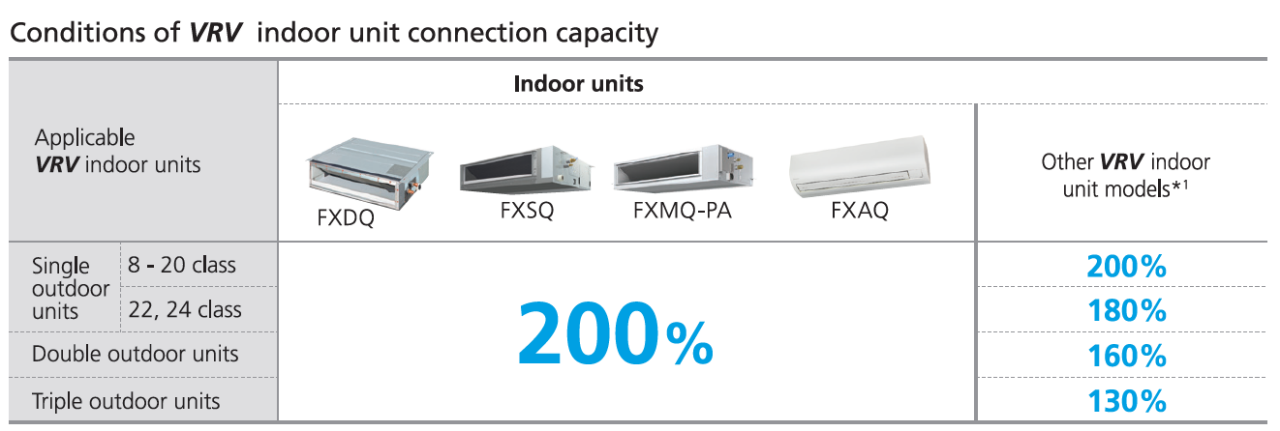

Connection Ratio
Connection Capacity at maximum is 200%

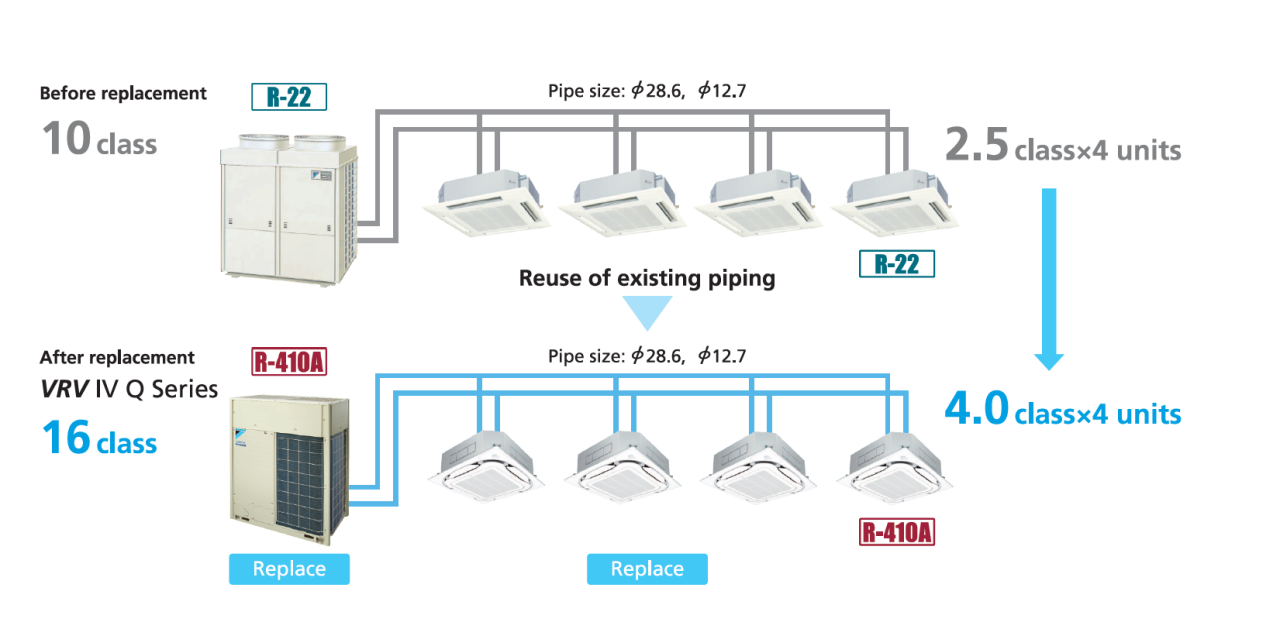

VRV IV Q series for replacement use enables the system capacity to be increased without changing the refrigerant piping. For example, it is possible to install a 16 class VRV IV Q series using the refrigerant piping of an 10 class R-22 system.
*1 For the FXF(S)(T)Q25 models, maximum connection ratio is 130 % for the entire range of outdoor units.
Note: If the operational capacity of indoor units is more than 130%, low airflow operation is enforced in all the indoor units.
Benefits of System Replacement
Automatic
Refrigerant charging, cleaning, and test operation can be done with a single switch.
The automatic refrigerant charge function automates the charging of the proper refrigerant amount and the closing of shut-off valves by pressing a switch after pre-charging.
Cleaning inside piping is unnecessary because it is handled automatically by the VRV IV Q unit.
*Note: There are conditions (ambient temperature, connection ratio) under which the automatic refrigerant charge can be used. The refrigerant amount automatically charged may differ from calculated values but does not affect performance or quality.*
Time Saving
Enables smooth replacement of air conditioning with less effect on operations and users in the building.
Cost Saving
By the reuse of existing piping, 35% of the cost down can be realized compared to installing new pipes.
Design Flexibility

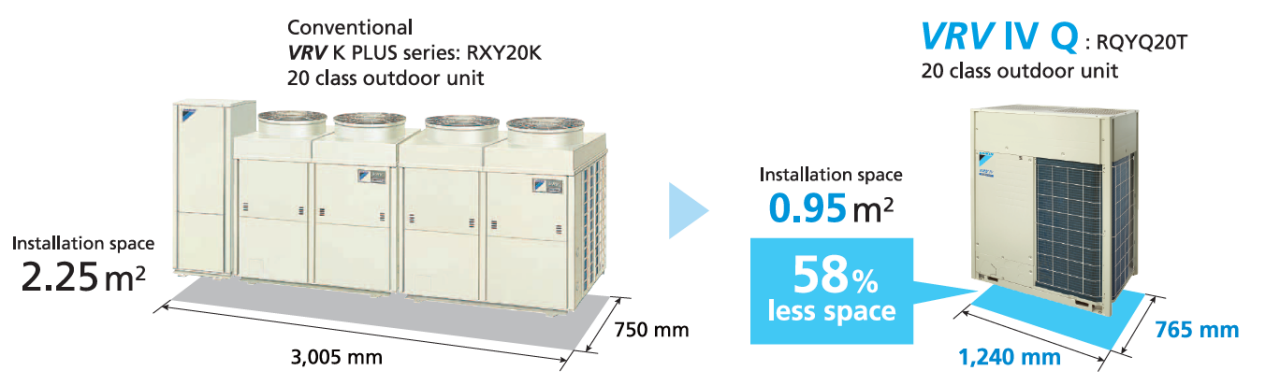

Significantly more compact outdoor unit enables the effective use of limited space.
Compact design enables the effective use of space taken up by existing machinery.
System Flexibility
An increased number of connectable indoor units in a single system.
More indoor units can be connected in a single system, enabling consolidation of existing piping.
High External Static Pressure 78.4 Pa
Enables Increased Capacity
VRV IV Q series for replacement use enables the system capacity to be increased without changing the refrigerant piping. For example, it is possible to install a 16 class VRV IV Q series using the refrigerant piping of an 10 class R-22 system.
Energy saving

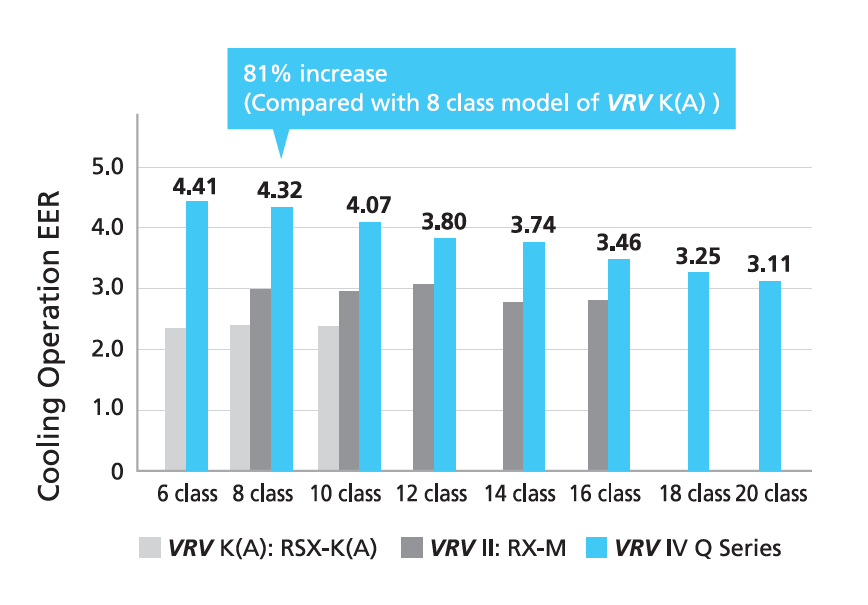

Higher Energy Efficiency Ratio (EER)
VRV IV Q series delivers highly efficient performance, contributing to high energy savings.
- Cooling operation conditions:
Indoor temp. of 27° CDB, 19° CWB, and outdoor temp. of 35° CDB.
VRT Control for optimal annual efficiency
VRT automatically adjusts refrigerant temperature to individual building and climate requirement, thus further improving annual energy efficiency and maintaining comfort.

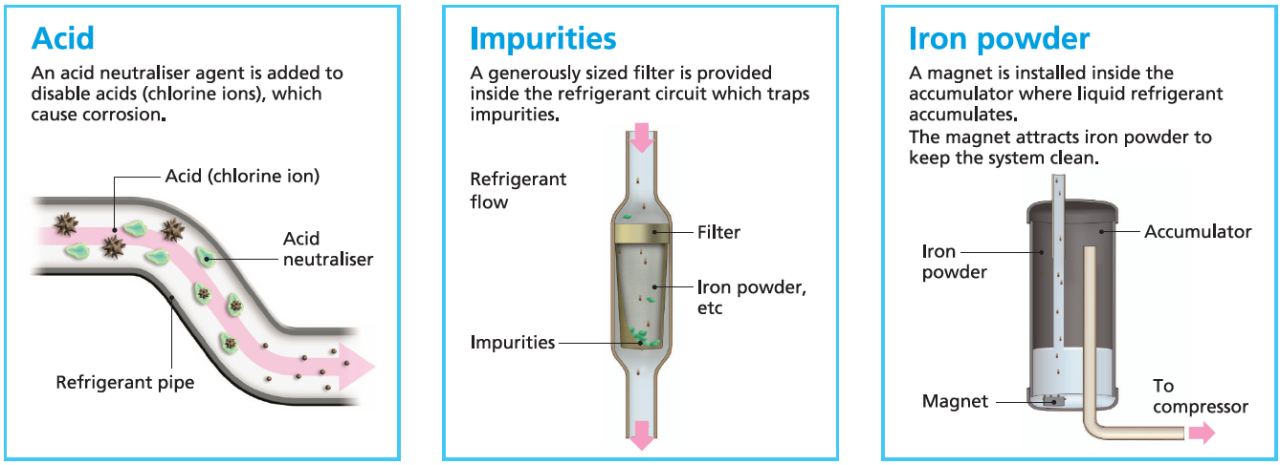

New Technology that allows use of existing piping
New tested contamination collection method: Collects contamination from existing piping, eliminating compressors and electric valve malfunction.
Reliable and Stable Technology
High reliability at high ambient temperatures
Using refrigerant to cool the inverter power module helps minimise the size of the electronic components, and this results in reduction of airflow resistance and high efficiency of the heat exchanger.

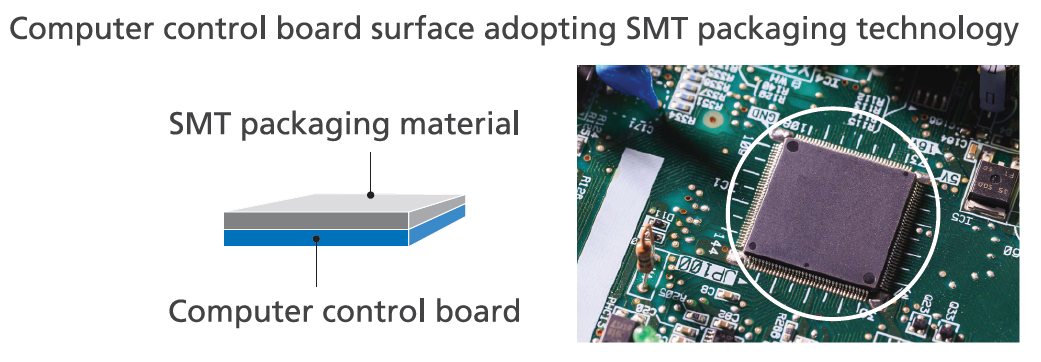

SMT* packaging technology
• Improves the anti-clutter performance.
• Protects your computer boards from the adverse effects of sandy climates and humid weather.
Enables:
- Suitability for high ambient temperatures
- Miniaturization of electric components

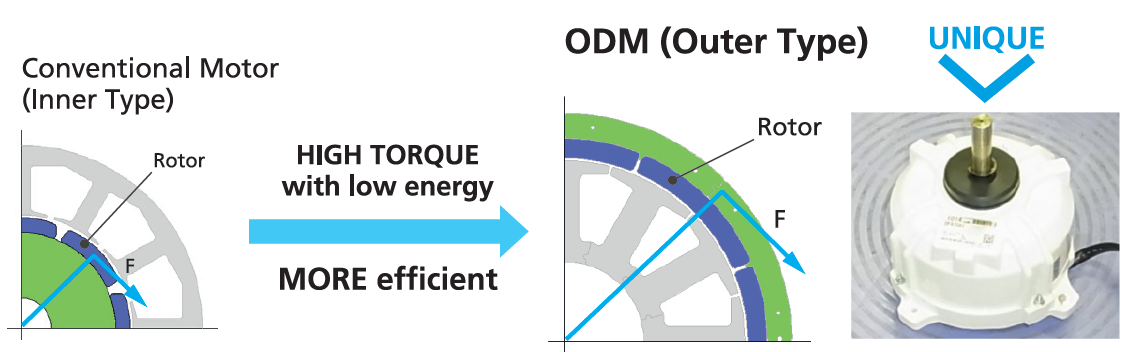

Outer Rotor DC Motor
Only Daikin has adapted an ODM with the feature of stable rotation and volumetric efficiency.
